Torfab High-Flow diesel Air Box – 1HD-T/FT/FTE, 1HZ, LM2

High-Flow Diesel Air Box Kit

When increasing boost and fuel delivery on a 1HZ, 1HD-T, or other turbo diesel Land Cruiser engine, the factory intake system can quickly become a restriction.

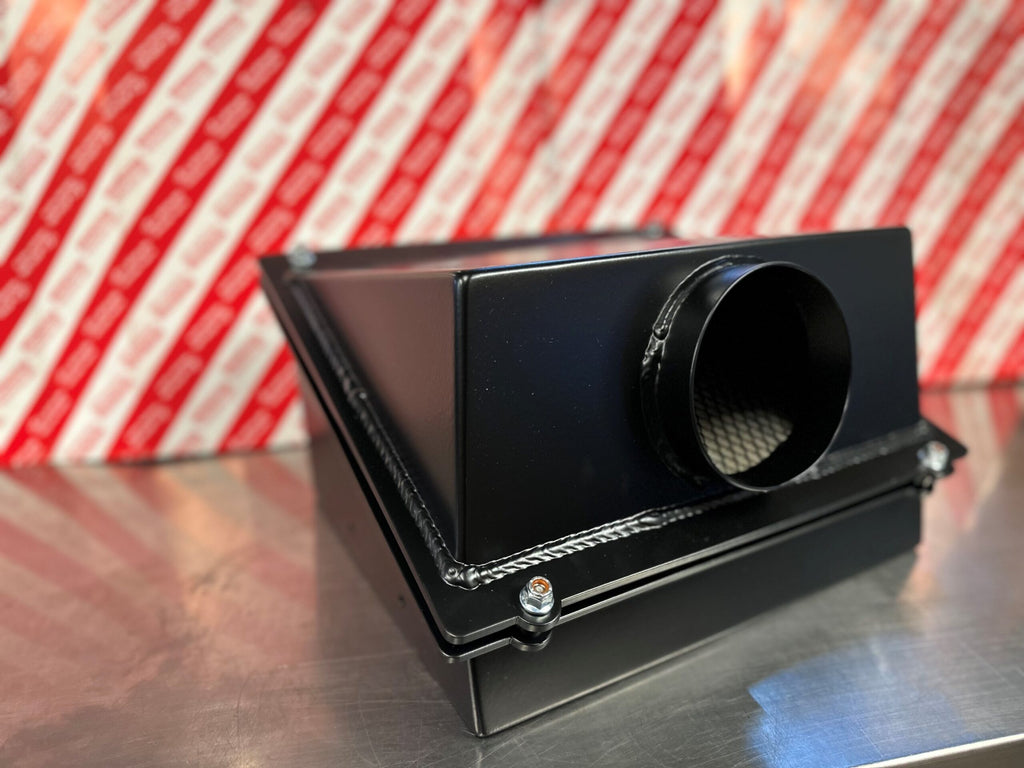

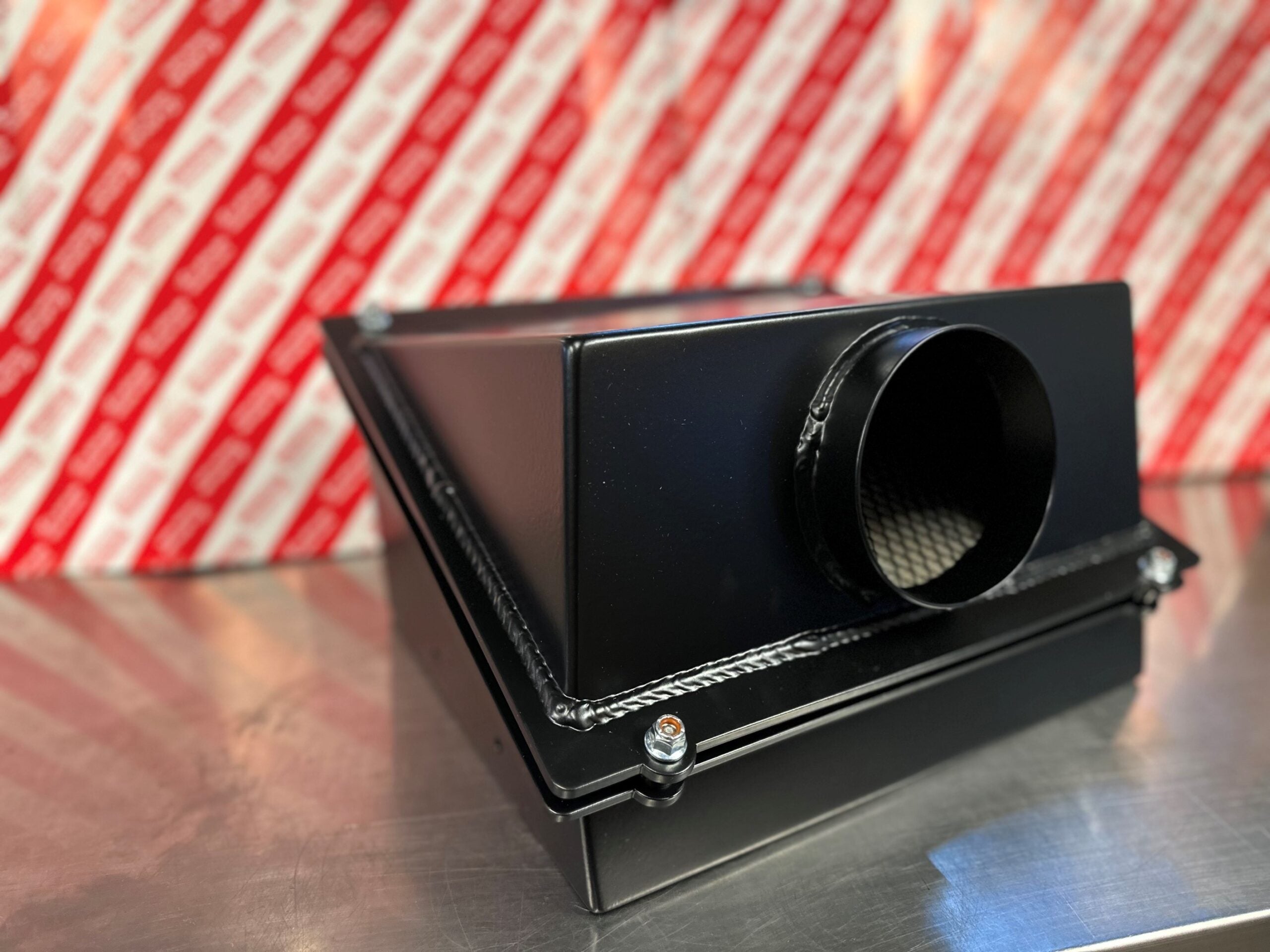

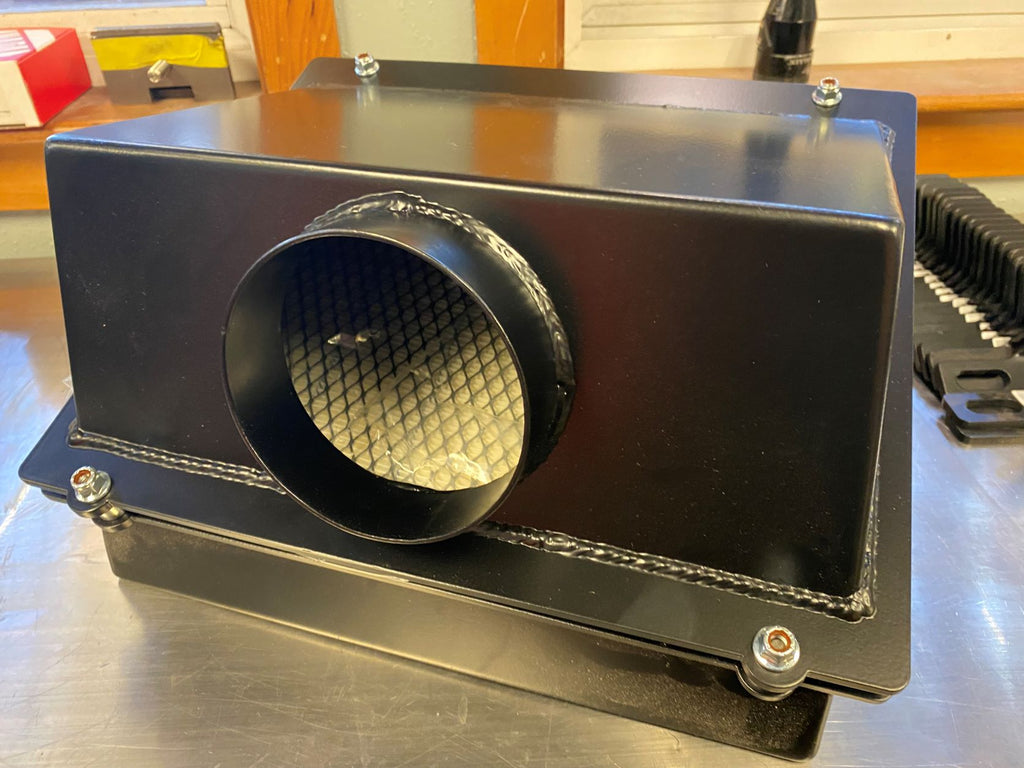

The Torfab High-Flow Air Box was designed to maximize airflow while providing excellent filtration for both daily driving and off-road use. Featuring a large 4-inch outlet along with a high-capacity filter element, this system significantly reduces intake restriction compared to many factory air box designs.

During testing, we found substantial reductions in intake vacuum between the air filter and turbocharger, particularly on modified diesel applications running increased boost levels. Reducing intake restriction allows the turbocharger to operate more efficiently and helps ensure your performance upgrades can reach their full potential.

This air box utilizes a readily available 2001 Duramax air filter, making replacement filters easy to source almost anywhere.

Filter Element:

• 2001 Silverado Duramax Air Filter

• GM Part Number: 19160301

Features

• Large 4-inch outlet

• High-flow filter design

• Reduced intake restriction

• Improved airflow for modified and turbocharged diesel applications

• Durable aluminum construction

• Serviceable and easy-to-source filter element

• Designed and manufactured by Torfab

Compatibility

Available mounting brackets for:

• Toyota Land Cruiser FJ60

• Toyota Land Cruiser FJ62

• Toyota Land Cruiser FZJ80, HDJ80, HZJ80

Snorkel Compatibility

Our air boxes utilize an open-to-the-fender design and can be configured for high-flow snorkel applications.

Snorkel plate can be purchased here

A custom snorkel plate can be supplied upon request for customers building a dedicated snorkel system. Additional charges apply for the custom plate. Final fabrication and integration with the chosen snorkel system are the responsibility of the customer, as fitment requirements vary by vehicle and snorkel manufacturer.  One thing to note, most available snorkels are a choke point to a high flow airbox negating the benefit, keep in mind that you would want a Moonlight fab 4" snorkel to get any real benefit utilizing this box.

Important Notes

• Intake noise will increase compared to the factory air box.

• Right-hand-drive vehicles may require relocation of the cruise control module and/or power distribution components to provide adequate clearance.

• Filter element and brackets are included

Whether you're running a mild turbo upgrade or a heavily modified diesel Land Cruiser, the Torfab High-Flow Air Box provides the airflow capacity needed to support increased performance while maintaining reliable filtration.
