LT Engine Conversion Adapter Kit for 80 Series Land Cruiser

The Torfab LT Conversion Adapter Kit allows you to install a Gen V GM V8 engine and factory 8-speed or 10-speed transmission into your 80 Series Land Cruiser while retaining the factory transfer case location, transfer case crossmember, and stock drivelines.

Unlike many conversion options that require extensive fabrication, driveline modifications, or frame welding, this system was designed to simplify the installation process by utilizing the factory engine mount locations and stock transfer case position.

The result is a clean, bolt-in installation that eliminates much of the guesswork associated with engine placement and drivetrain alignment.

Features

  • Bolt-in installation

  • No welding required

  • Retains factory frame-side engine mounts

  • Retains factory transfer case location

  • Retains factory transfer case crossmember

  • Uses factory-length drivelines

  • Designed specifically for 80 Series Land Cruisers

  • Compatible with factory GM 8-speed and 10-speed 4WD transmissions

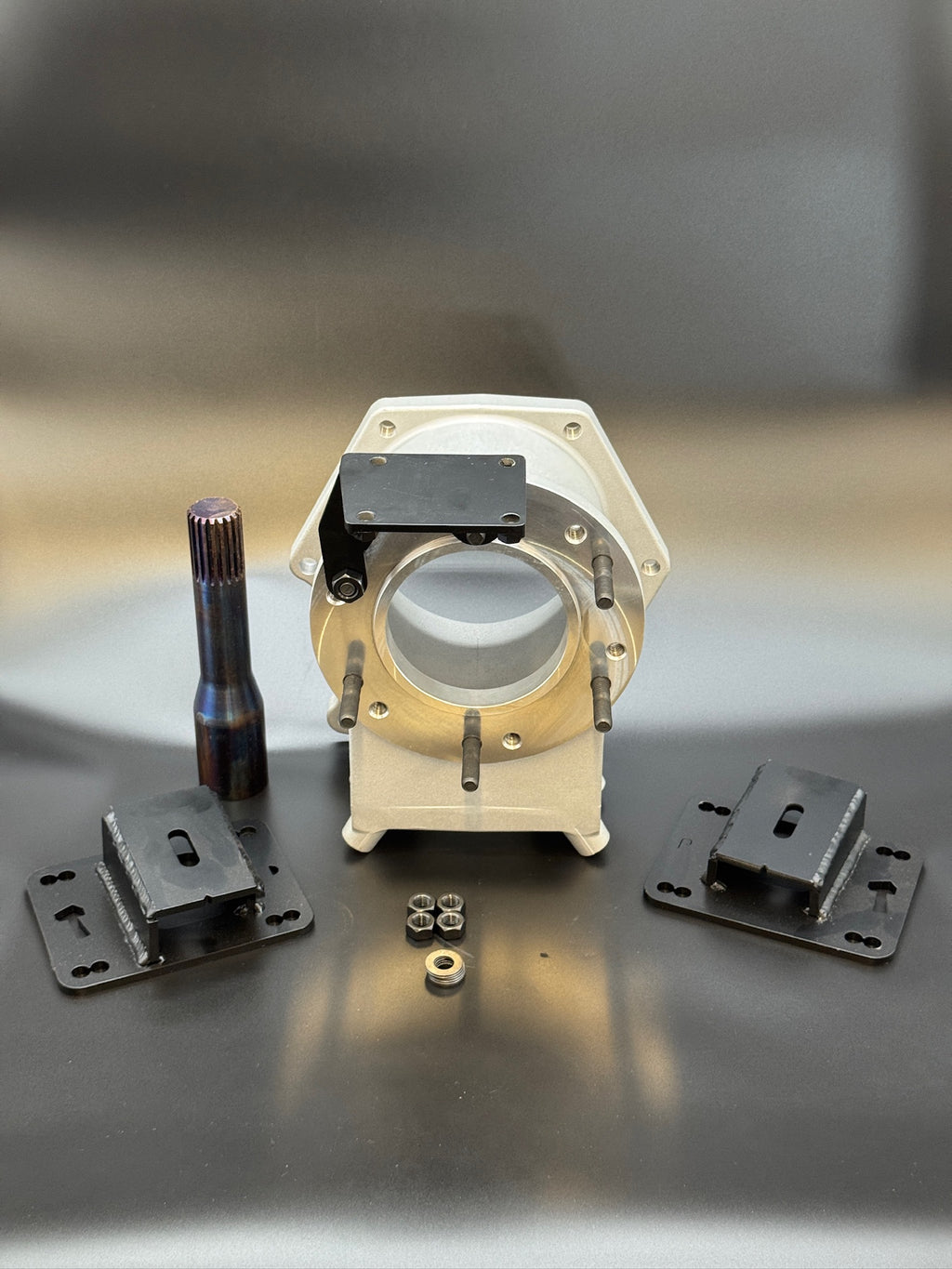

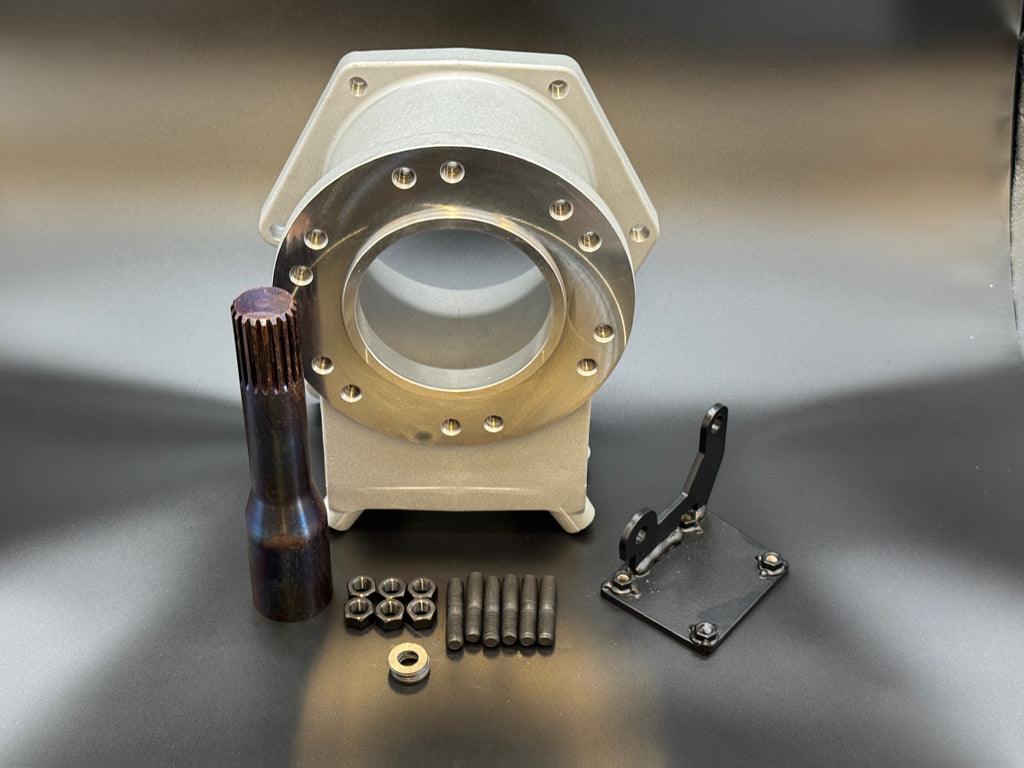

Kit Includes

  • LT Engine Mount Adapter Brackets

    • Allows Gen V GM LT engines to bolt directly to the factory 80 Series frame mount locations using Toyota engine mounts

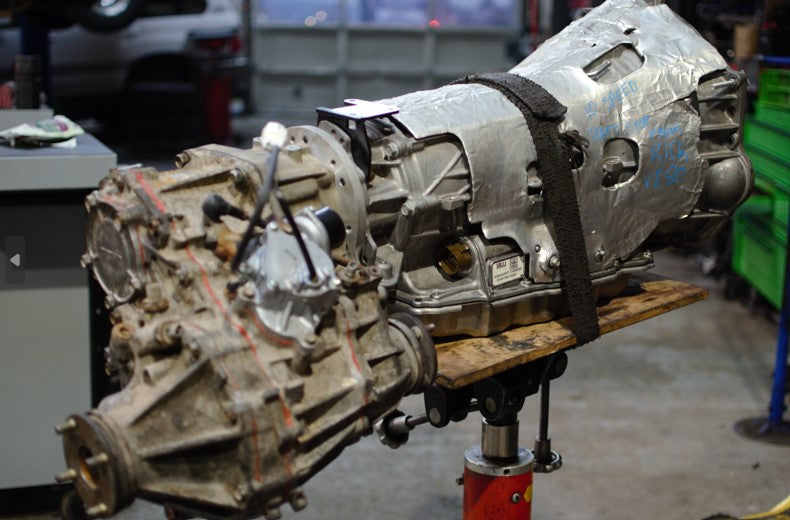

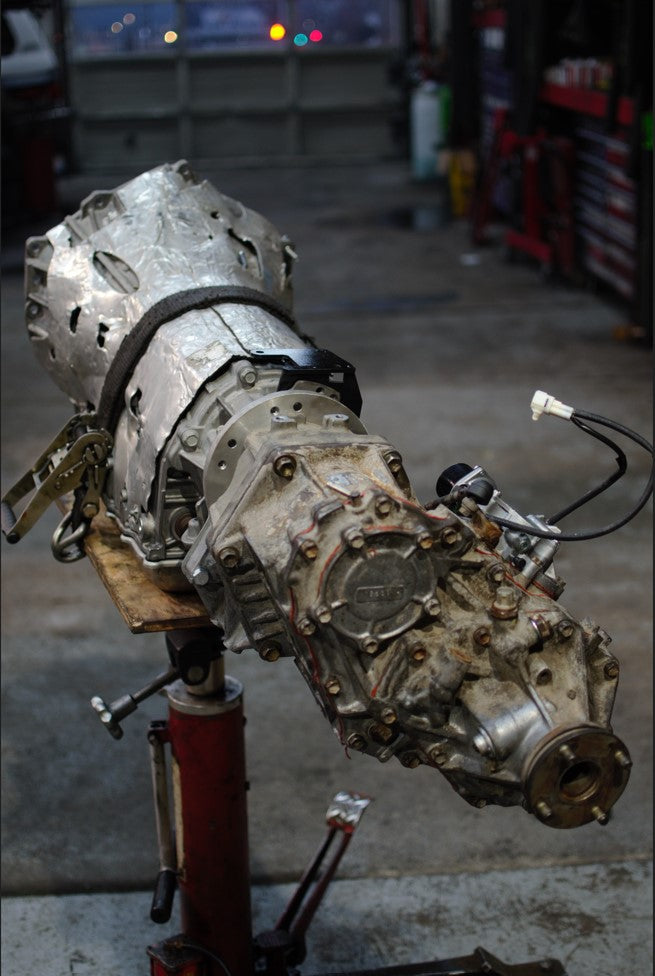

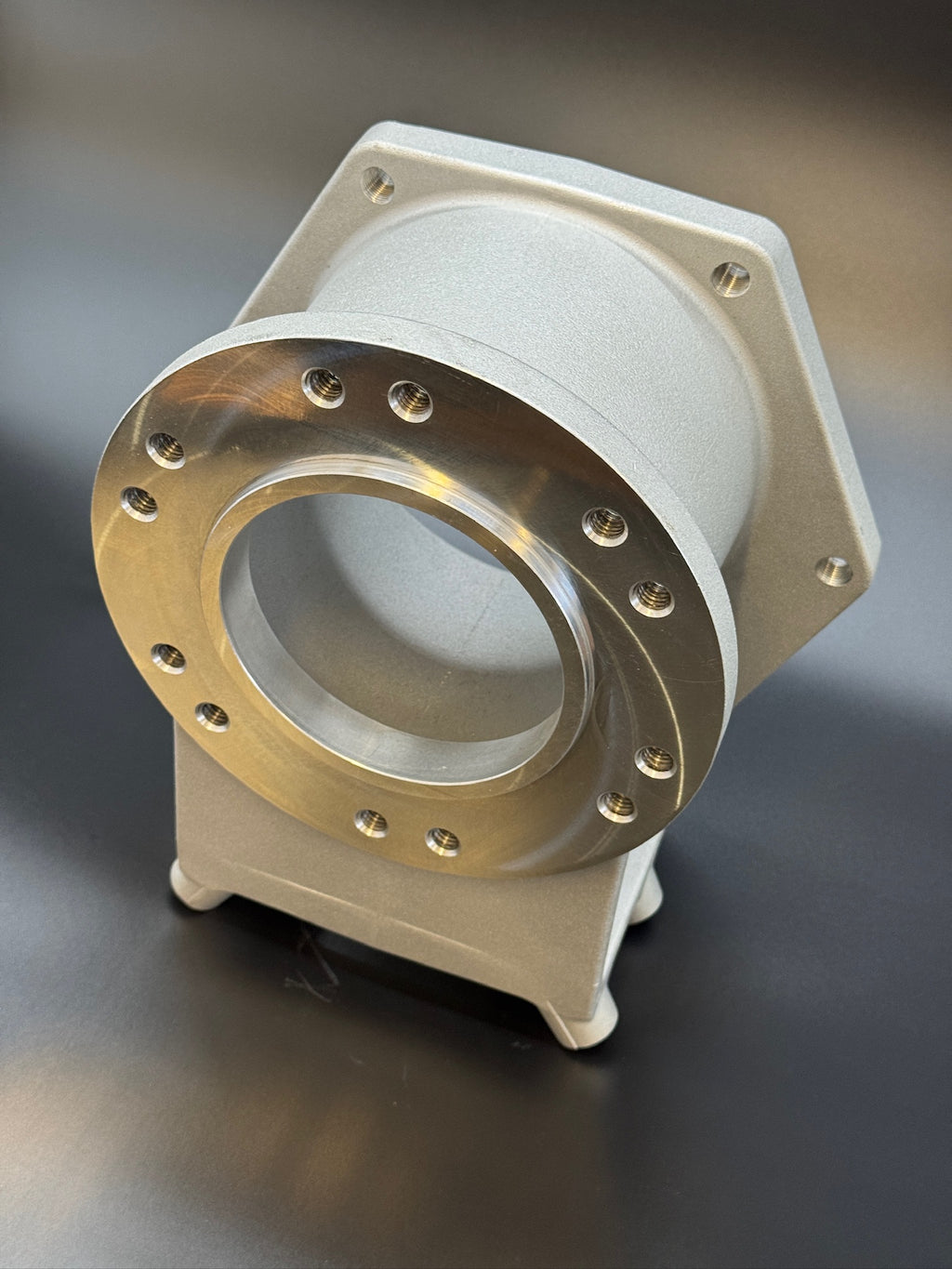

  • Torfab GM Transmission to HF2A/HF2AV Transfer Case Adapter

  • Transfer Case Shifter Adapter Bracket

    • Allows the transfer case shifter to remain in the factory interior location without modifying the body or transmission tunnel

Required Components

The following components are required and not included:

  • Gen V GM LT Engine

    • L83

    • L84

    • L86

    • L87

  • GM 4WD Transmission

    • 8L90

    • 10L80

    • 10L90

  • Toyota HF2A or HF2AV Transfer Case

  • Toyota 80 Series Engine Mounts

    • Reuse your existing mounts or purchase new Toyota replacements

  • Early 80 Series Transfer Case Shifter Base Assembly (1991–1994)

    • Required for all installations

    • 1995–1997 vehicles will need to source this component

    • Toyota Part Number: 36344-60021

Coming Soon

Torfab is currently developing a transmission shifter solution that will allow use of the factory Land Cruiser shifter with GM 8-speed and 10-speed automatic transmissions.

Important Information

This kit includes mechanical adapter components only.

Electrical integration, wiring, ECU programming, tuning, and conversion support are not included. As a small specialty manufacturer, Torfab focuses on designing and producing high-quality mechanical components that simplify Land Cruiser conversions. Because every conversion is unique, we are unable to provide technical support for wiring, programming, or electronic integration.

Questions?

Be sure to review our  Check out our LT Adapter FAQ.  for additional installation information, compatibility details, and frequently asked questions.
